HSM mixing cup system


SKU: HSM-1A1D25E Categories: ,

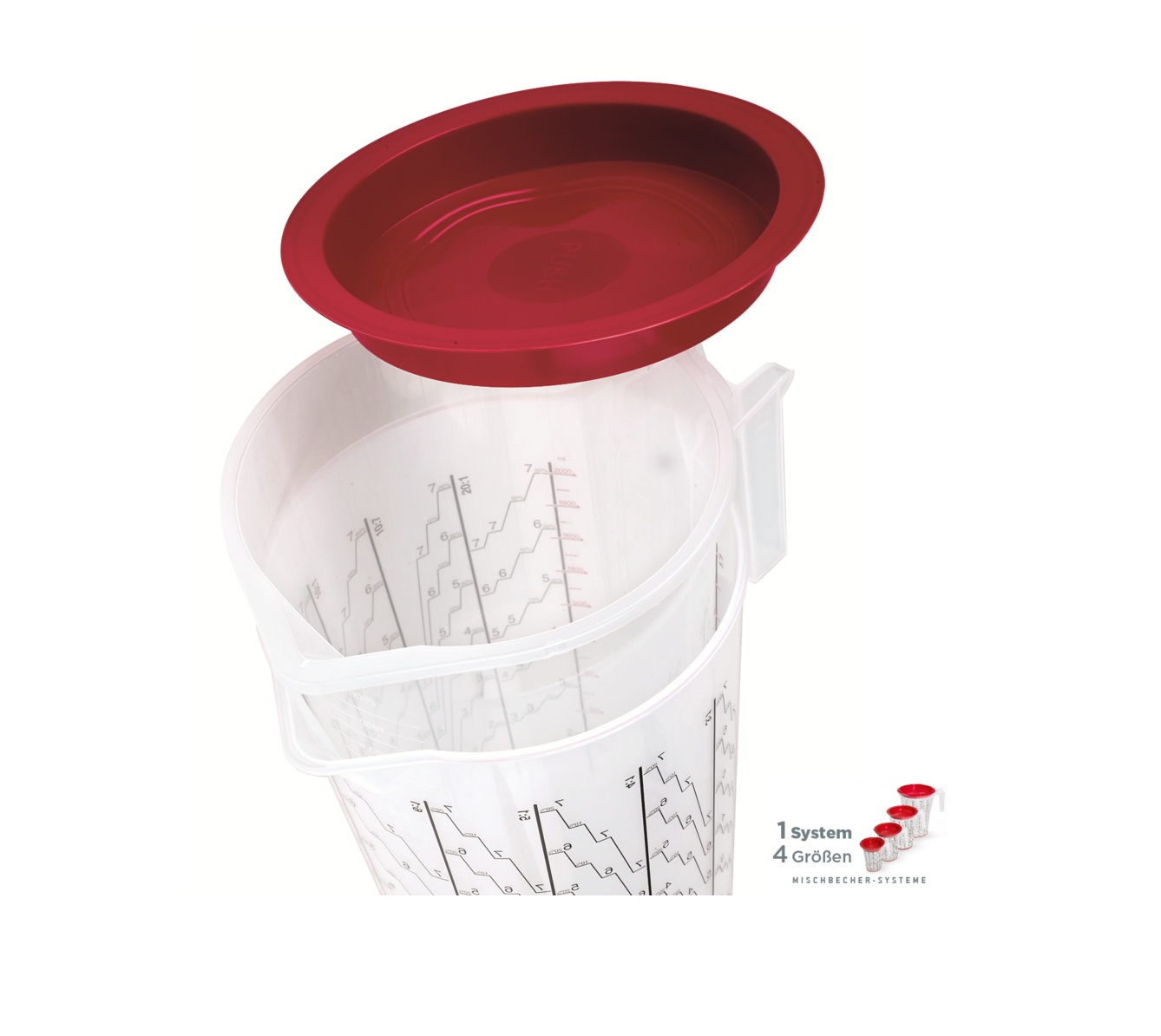

HSM mixing cup system

Scope of delivery:

  • 1 outer container
  • 25 / 100 / 240 inserts

Available in 4 different model sizes.

The sophisticated system for mixing, pouring and storing lacquer. The all-round, bordered rim prevents the paint from penetrating into the outer container.
The easy-to-read, scratch- and solvent-resistant measuring scales (1:1 – 8:1, 10:1, 20:1 and 10:7) on the outer container help you avoid costly mixing errors. No cleaning effort for mixing vessels due to the practical disposable cup inserts. The outlet nose allows easy decanting.

Technical data:

  • Material: polypropylene
  • Mixing ratios: 1:1 | 2:1 | 3:1 | 4:1 | 5:1 | 6:1 | 7:1 | 8:1 | 10:1 | 10:7 | 20:1
  • Effective cup capacity: small: 500ml | medium: 1000ml | large: 2000ml | maxi: 5000ml
  • Weight outer container: small: approx. 65g | medium: approx. 117g | large: approx. 184g | maxi: 410g
  • Weight cup insert: small: approx. 20g | medium: approx. 32g | large: approx. 62g | maxi: 135
  • Weight lid: small: approx. 13g | medium: approx. 19g | large: approx. 24g | maxi: 60g
