Paint Stop Filter

SKU: 0.75-25.00-RO Categories: ,

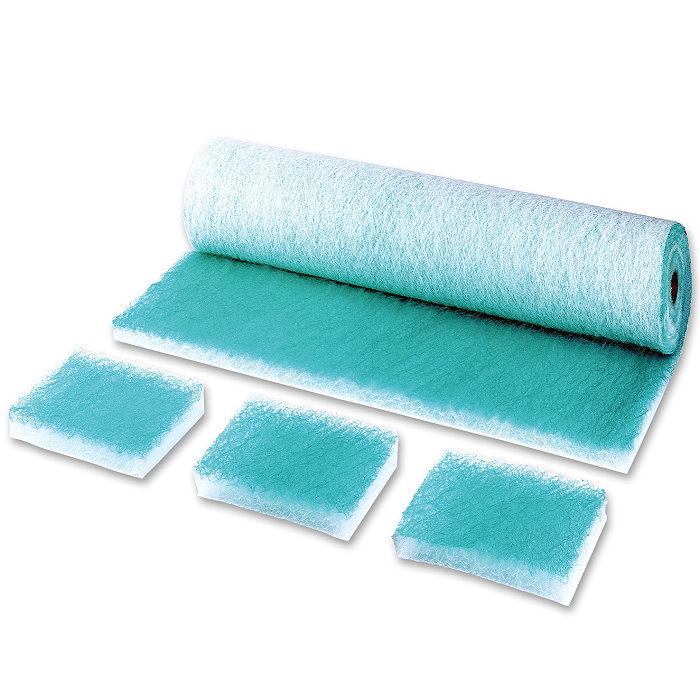

Paint Stop Filter Mat G3 (EU3) 70mm thickness green-white

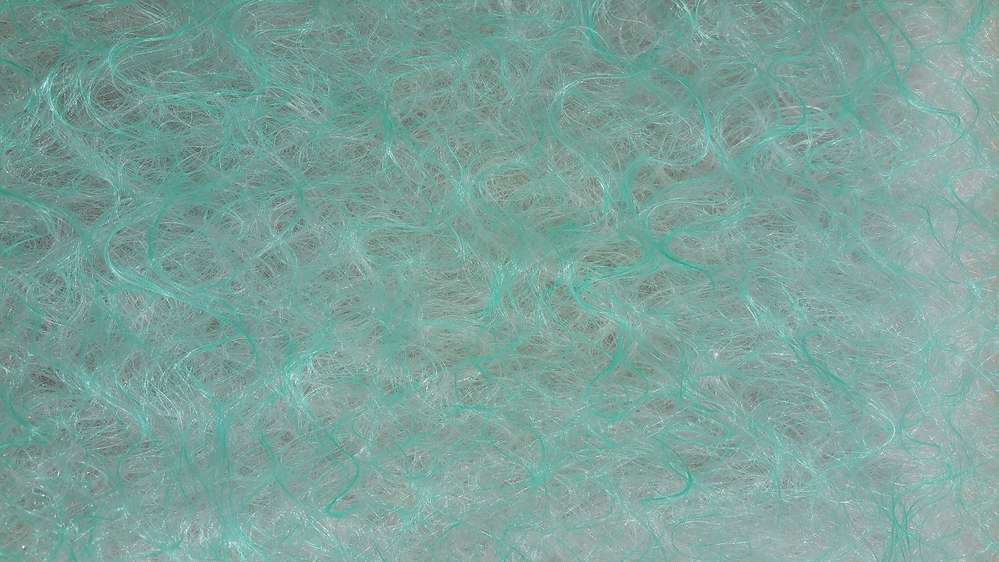

The Paint Stop G3 filter mats have been specially designed for paint mist separation in paint booths. They are used in the furniture industry, carpenters, joiners, the automotive industry, in window construction and in mechanical engineering. Paint Stop G3 consist of high-quality, motionless glass fibre medium in an elastic fibre structure. The filter mats have a compressed clean air side. For better classification, the dust air side has been dyed slightly green.

All requirements and conditions of the environmental authorities are fulfilled, non-combustible according to DIN 4102.

All prices are per roll. Special widths or special cuts can also be supplied on request.

Scope of delivery:

  • Roll 25 m
  • Width from 0.75 m to 2.00 m at choice

Technical data

  • Filter quality class according to prEN779 – G3 (EU3)
  • filtration efficiency – 93% to 97
  • Colour storage capacity at 80Pa and 0.7 m/s – maximum 4.7 kg/m²
  • Air flow rate per m² – 2500 to 6300 m³/h/m²
  • Face velocity 0.7 to 1.75 m/s
  • Initial differential pressure – 7 to 40 Pa
  • Material thickness – 70 mm (3″)
  • Weight – 250 g/m²
  • Temperature resistance – up to 100°C

Alternative: Cardboard filter
